One Router Guide / Jig that is not only easy to make but versatile to use.
Cut Dados or Grooves, Rebates or Rabbits with ease, accuracy, repeatability and Control.

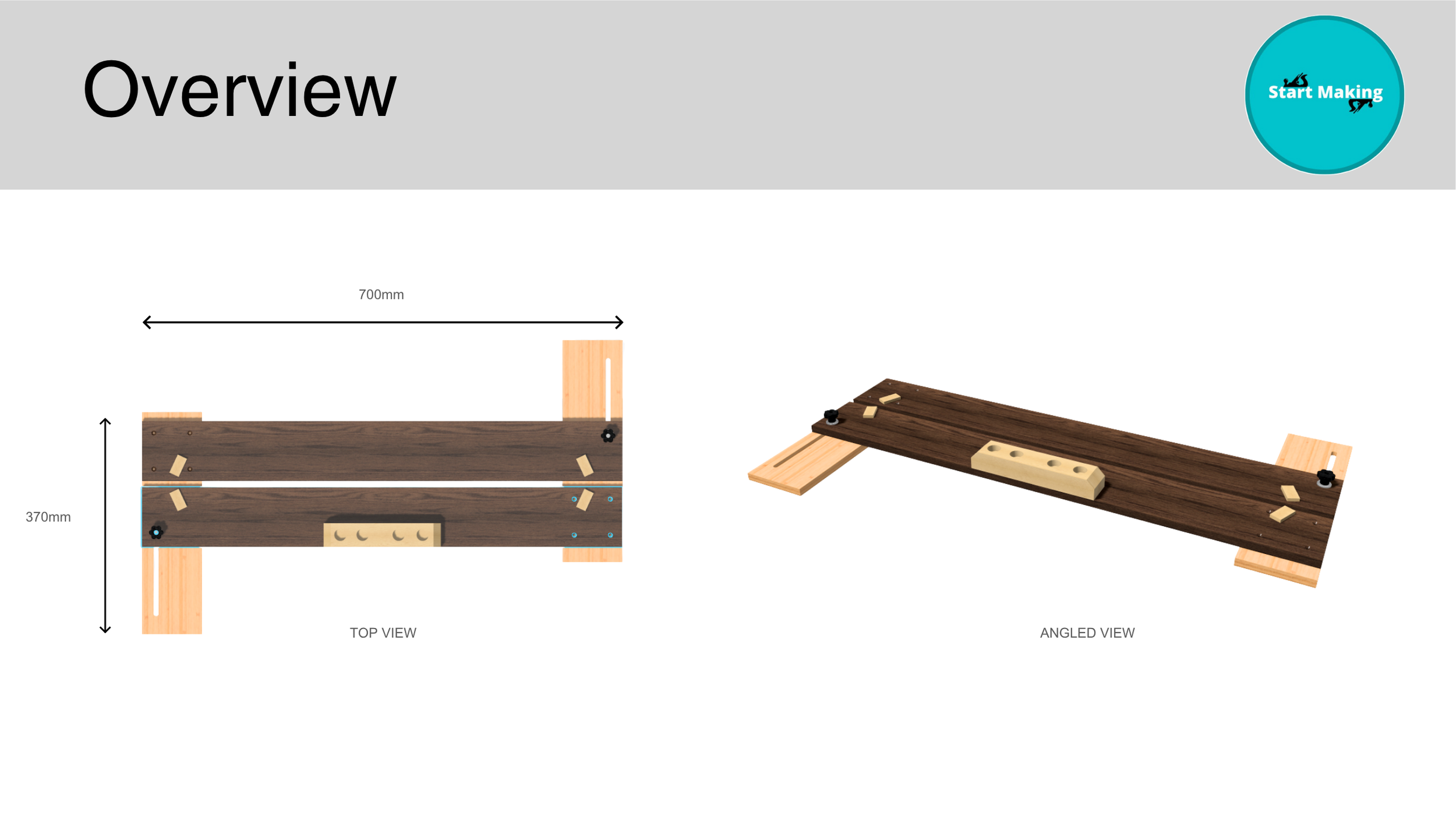

20 pages of simple steps to help you to complete the build. See the pictures for the finished item in use.
Plans in Both Metric and Imperial units with 2 separate files.
Please note that the original was created in Metric and converted. And while I have done my best to ensure accuracy, figures have been rounded to the nearest 1/16”
Full list of materials and tools needed included in the plans along with a place to ask any questions along the way.
Full build along video here - https://youtu.be/6vJvbLoScTE
